A Remote Controlled Camera for Shaft Exploration

The development of the MineCam has allowed the Club to take 'armchair' caving out into the field!

This remote sensing device allows most of the team to shelter in the back of a Land-Rover (other vehicles are available) watching the TV pictures, while 1 poor individual stands (usually in the rain) by the shaft or hole in the ground lowering and raising the Minecam.

The MineCam™

The MineCam™ Mark 'nearly' 6

Techno-Facts

The latest version of the MineCam (nearly Mark 6) consists of two high quality micro-miniature colour video cameras, together with a switchable light source that can change from a wide beam to a narrow more intense beam of light (ideal for looking along passages or holes in the walls of the shaft), all mounted on a remote controlled pan and tilt frame/head.

The light-weight assembly can be lowered up to 200m down shafts, while the TV pictures are viewed on the surface. The pictures include camera heading information (obtained from a canabilised 'Tandy' Radio Shack electronic car compass).

Underground sounds are picked up via a small in-built microphone. While other items like the presence of gas and bats can also be detected.

To help interpret the scale of objects being viewed, a laser range finder gismo has also been incorporated into the camera head.

The use of 2 camers allows a 3d view to seen on a pair of video glasses, this gives a much more realistic view of what is there. The amusing side-effect of this is that the person wearing the glasses tends to move their head around in sync with the movements of the camera down the shaft - it is important to keep the person wearing the glasses away from any nearby holes or obstacles!

Reasons behind the MineCam

  1. Shropshire (England) has a lot of deep mine shafts and collapsed workings with unstable sides. The MineCam can be used to check them for possible tunnels or interesting levels without having to risk a person.
  2. In a search and rescue operation the camera can be quickly and easily lowered down holes to check for the 'missing' persons, without the need for rigging the pitches and putting rescuers at risk.
  3. When dangerous holes, or holes too small for a person to get down, open-up in the ground then the MineCam can be lowered down to see whats below, and if it is worth further exploration.

yet another flying batCredits

  • The development of the MineCam, the Borg and the Location device is almost entirely the work of 1 Club Member (Peter Eggleston), who has built the devices (over a number of years) in his spare time from an amazing variety of bits and pieces. The professional look to the finished items, totally belies their actual origins!

Main Gadgets



Miners hat with candle and lens

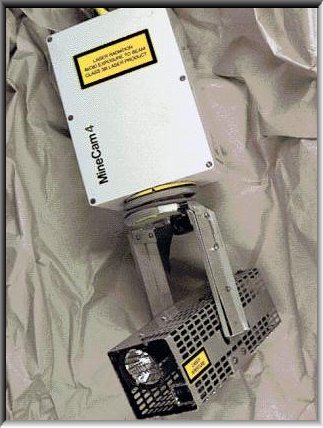

The MineCam™ Mark 4
